Fixing the ethernet at ASRock B460M PRO4 Intel MATX

December, 2020

After spending the whole weekend trying to figure out why the ethernet of my new motherboard didn't work thanks to a post of this awsome fella: https://forums.tomshardware.com/threads/b460m-pro4-ethernet-port-cannot-start-code-10.3626496/ I got it to work.

[THE FIX]

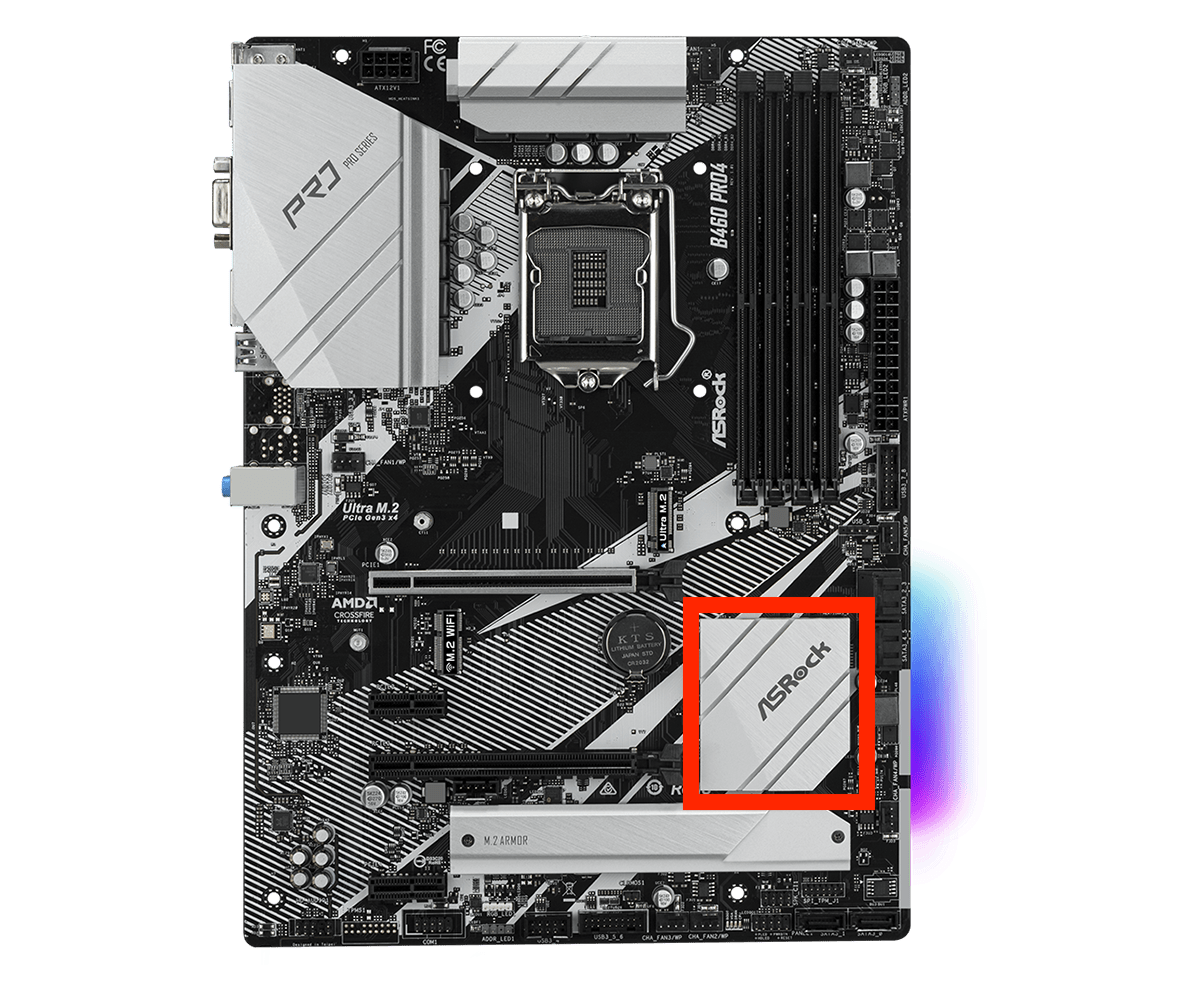

There was a mainboard mount screw form the pc case under my south bridge which produced a short circuit and disabled the ethernet port.

Also, I have seen people disabling the wake-on-lan option inside the bios to get the ethernet to work.

Good luck ;)
